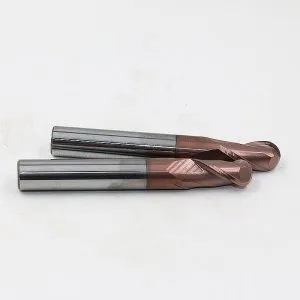

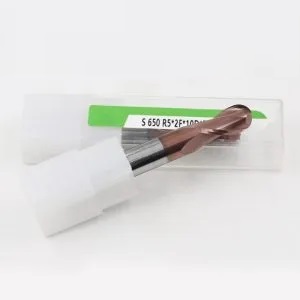

2 Flute Solid Carbide Ball Nose End Mill

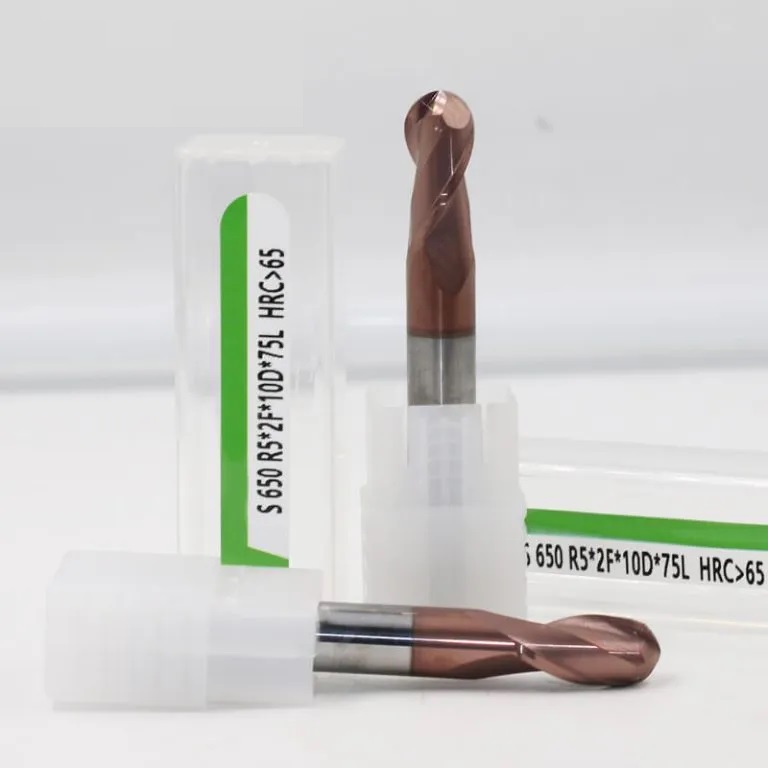

50 R5*2F*10D*75L HRC>65 for high hardened steel, Coating

Carbide end mill

Brand name: NEUBURG
Milling Type: Carbide Ball nose endmill, Profile Mill
Material: Solid Carbide
Flute: 2 Flutes
Helix angle: 30degree
Coating: TiAlN coated
Shank tolerance: h6
Suitable for High Hardened Steel HRC45-55 cutting
Application: CNC machining center
Product features:
1.High hard,good toughness material for tools,special angle design,finishing of high hard steel material
2.Suitable for HRC48-55 high hard steel finishing machining
3.Air and oil mist cooling is recommended
Transport: TNT/UPS/DHL/Fedex/EMS

Shoulder Slotting Face

Product Description Product size

Carbide End Mill Specifications

Brand Name	NEUBURG
HRC	45/55/58/60/65/70
Flutes	2-6 Flutes
Material	Carbide, Tungsten Cobalt Alloy, Carbide, Tungsten Cobalt Alloy, Coated Carbide
Coating	AITIN, TIAIN, TICN, Tin, 5070, AITIN, TIAIN, TICN, Tin, another coating available
Precision	High Precision
Controlling Mode	CNC
Processing Type	Metal/general use
Usage	High Speed Cutting
Suitable for	Copper, Cast Iron, Carbon Steel, Mould Steel etc.
MOQ	5 Pieces

Key Features:

Widely used in the processing of high-hardness materials.
Recommend to select the size with minimum overhang.
Need to adjust RPM and feed rate reasonably according to cutting depth.
With highly heat-resistant ALTIN coating, can be used for high-speed processing.
High toughness, using grain-sized carbon tungsten as the raw material.
Help to increase the smoothness, reduce the friction coefficient, and improve the lathe efficiency.

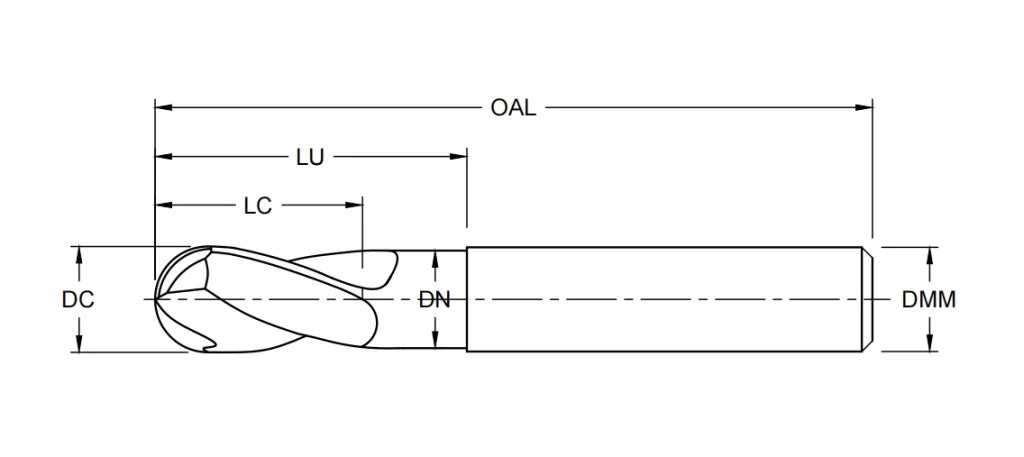

R	L	D
RO.5	50	d4
R0.75	50	d4
R1	50	d4
R1.25	50	d4
R1.5	50	d4
R2	50	d4
R2	75	d4
R2	100	d4
R2.5	50	d6
R2.5	75	d5
R2.5	100	d5
R3	50	d6
R3	75	d6
R3	100	d6
R3	150	d6
R4	60	d8
R4	75	d8
R4	100	d8
R4	150	d8
R5	75	d10
R5	100	d10
R5	150	d10
R6	75	d12
R6	100	d12
R6	150	d12
