4 Flute Corner Radius End Mill For Hrc55 Steel

Milling Cutting Tool HRC60~65 Carbide 4 Flute Corner Radius End Mill

Carbide end mill

Brand name: NEUBURG
Specification: metric size or inch 1/4″, 1/2″, 1/8″, 3/16″ etc, dia 0.5 – 25mm, total length 38mm – 200mm
Number of flutes: 4 flutes, multiple flutes
Cutter type：milling cutter, flattened end mill,Corner Radius End Mill
Material：Solid carbide / tungsten steel (100% new material)
Coating：AlTiN,TiAlN,TiSiN,TiN,DLC,NANO available
Helix angle：right hand spiral 35°
Workpiece material: For metal working include steel, stainless steel, cast iron, hardened steel, alloy steel, powder metallurgy, Metal Cutting Tools titanium etc
Processing：for cnc milling, side milling, shouder milling, slotting, face milling etc

Product Description Product size

Carbide End Mill Specifications

Brand Name	NEUBURG
HRC	45/55/58/60/65/70
Flutes	2-6 Flutes
Material	Carbide, Tungsten Cobalt Alloy, Carbide, Tungsten Cobalt Alloy, Coated Carbide
Coating	AITIN, TIAIN, TICN, Tin, 5070, AITIN, TIAIN, TICN, Tin, another coating available
Precision	High Precision
Controlling Mode	CNC
Processing Type	Metal/general use
Usage	High Speed Cutting
Suitable for	Copper, Cast Iron, Carbon Steel, Mould Steel etc.
MOQ	5 Pieces

Key Features:

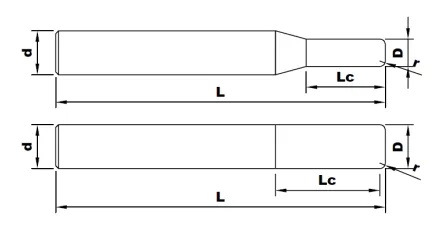

R	L	D
RO.5	50	d4
R0.75	50	d4
R1	50	d4
R1.25	50	d4
R1.5	50	d4
R2	50	d4
R2	75	d4
R2	100	d4
R2.5	50	d6
R2.5	75	d5
R2.5	100	d5
R3	50	d6
R3	75	d6
R3	100	d6
R3	150	d6
R4	60	d8
R4	75	d8
R4	100	d8
R4	150	d8
R5	75	d10
R5	100	d10
R5	150	d10
R6	75	d12
R6	100	d12
R6	150	d12
